iEXP Series

TM16 with ADF830SG

Smart digital display screen and the highest optical class

The backlit digital screen feature is especially useful when working in dimly-lit environments, or when performing tasks that require greater focus.

  • External grinding

    You can switch to grind mode by the external button.

  • Hard hat compatible

    You can pair it with hard hats for extra head protection.

  • Cutting

    Can be used for cutting.
Request a quotation
Overview Specifications Contact Approvals Related products
Smart screen for smart welds.

Smart screen for smart welds.

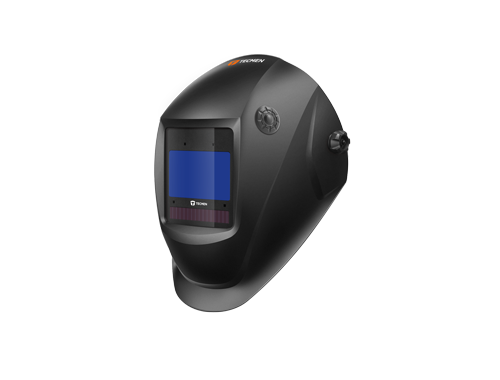

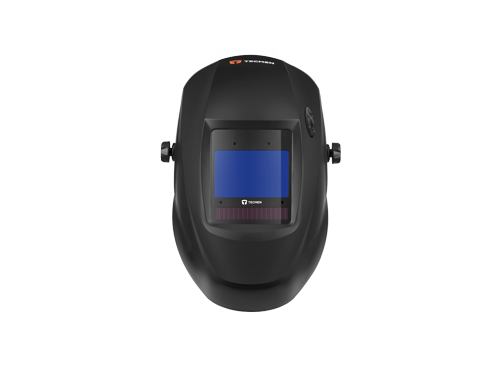

TM16 auto-darkening welding helmet

TM16 with ADF830SG

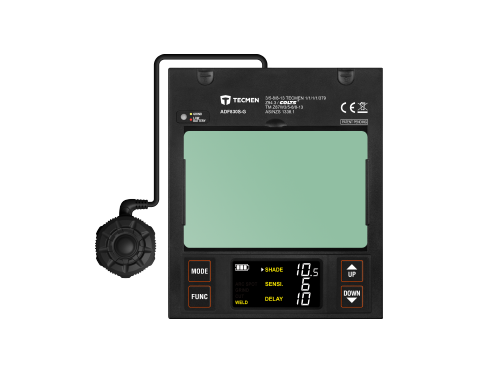

Backlit digital display control

Switch between welding, cutting, grinding and arc spot modes with a quick tap.

Key features

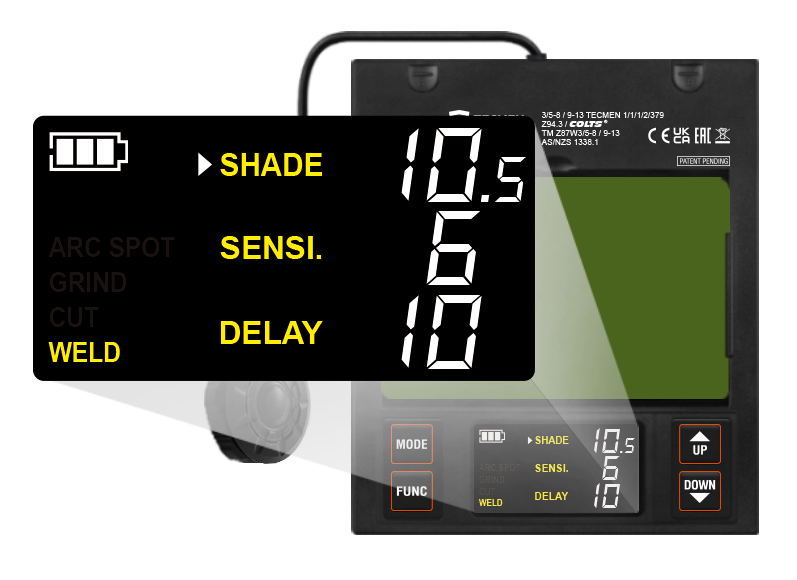

Digital display01

The smart digital backlit screen ensures clear and accurate visibility of your welding settings, even in low-light or dark environments.

Highly-adjustable headgear02

Heargear features 2 adjustable straps to fit the different head shapes. Easy to adjust viewing angle and distance.

4 independent arc sensors03

Four built-in independently operated sensors, ensure no arc flashes in complex operating environments.

External grinding control04

Allows for quick switch between welding and grinding modes without lifting your welding helmet or gloves.

Specifications

More information about our products

Specifications

ADF Model

ADF830SG

Optical class

1/1/1/1

Viewing area

97*62mm

Cartridge size

133*114*9mm

Arc sensor

4

Light state

DIN3.5

Dark state

DIN5-8/9-13

Shade control

Internal (digital display control)

Power on/off

Automatic on/off

Sensitivity control

Digital display control

UV/IR protection

Up to DIN 16 at all times

Power supply

Solar cell with 2 replaceable CR2450 lithium battery

Delay (dark to light)

0.1-1.0s adjustable by digital display control

Low amperage TIG rated

≥2 amps (DC); ≥2 amps (AC)

Grinding

Digital display and grind button control

Battery capacity test

N/A

Low battery indicator

Digital display and red light

Operating temp.

-10℃ to 55℃

Storing temp.

-20℃ to 70℃

Helmet material

High impact resistant nylon
