Versatile protection for every application.

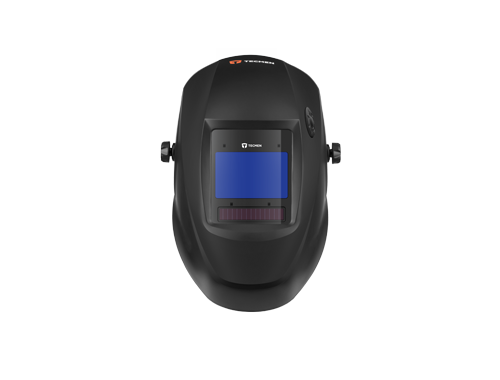

TM16 auto-darkening welding helmet

TM16 with ADF815L

Weld with high flexibility

Find your own welding solution. Grind with ease, tack weld with confidence, fear no inconsistent light.

Key features

DARK mode01

When the auto-darkening filter is set to DARK mode, it functions solely as a dark glass and does not provide auto-darkening. The shade number in DARK mode can beselected based on your specific configuration.

4 independent arc sensors02

Four built-in independently operated sensors, ensure no arc flashes in complex operating environments.

External grinding control03

Allows for quick switch between welding and grinding modes without lifting your welding helmet or gloves.

Pivot headgear design04

Adjustable pivot headgear with a built-in locking mechanism. Provides maximum comfort and a balanced weight distribution.

Specifications

More information about our products

Specifications

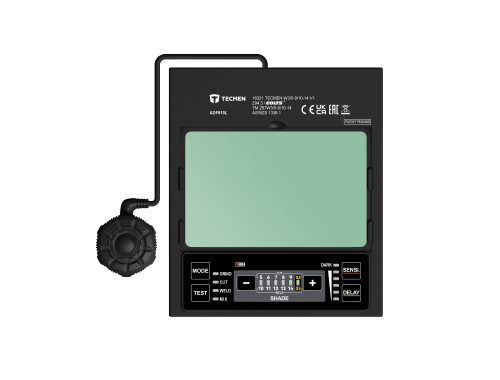

ADF Model

ADF815L

Optical class

1/1/1/1

Viewing area

94*62mm

Cartridge size

133*114*9mm

Arc sensor

Light state

DIN3.0

Dark state

DIN5-9/10-14

Shade control

Internal (digital display control)

Power on/off

Automatic on/off

Sensitivity control

By infinitely dial knob

UV/IR protection

Up to DIN 16 at all times

Power supply

Solar cell with 2 replaceable CR2450 lithium battery

Switching time

1/25000s from light to dark

Delay (dark to light)

0.1-1.0s adjustable by infinitely dial knob

Low amperage TIG rated

≥2 amps (DC); ≥2 amps (AC)

Grinding

Yes

Battery capacity test

Yes

Low battery indicator

Yes

Operating temp.

-10℃ to 55℃

Storing temp.

-20℃ to 70℃

Helmet material

High impact resistant nylon
