Lightweight and easy operation
Enhanced with a high-impact resistant material. Protects against high-impact damage, ensuring an extended product lifespan.
Hard hat compatible

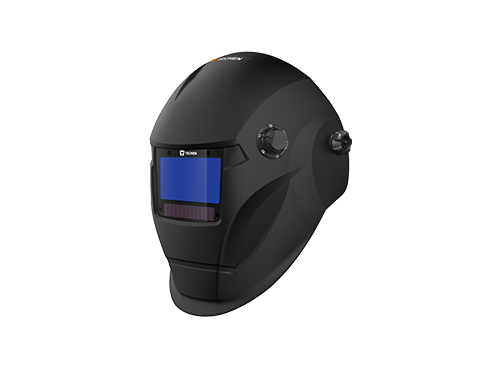

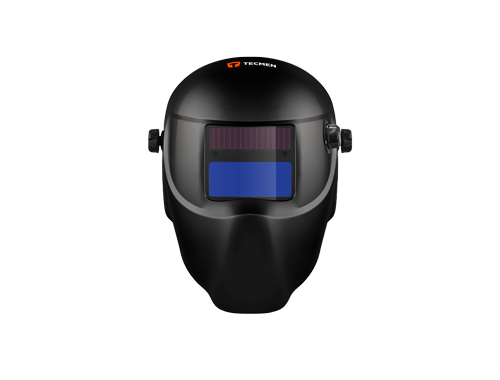

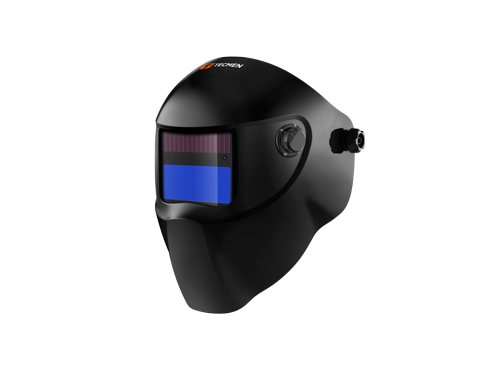

TM25 auto-darkening welding helmet
Shade, sensitivity and delay all adjustable.
Key features
Come with 2 built-in arc sensors that can work independently. The arc sensors focus on the welding arcs without any interference from surroundings. Applicable under direct sunlight environment.
1/16,000s instant switch, dark mode triggered immediately with no delay when arc is detected by the highly sensitive sensors.
Shading, delay and sensitivity can all be adjusted by the infinitely dial knob to meet different needs.
Built-in grind mode button allows you to stay at shade DIN 3.5 while performing grinding tasks.
More information about our products

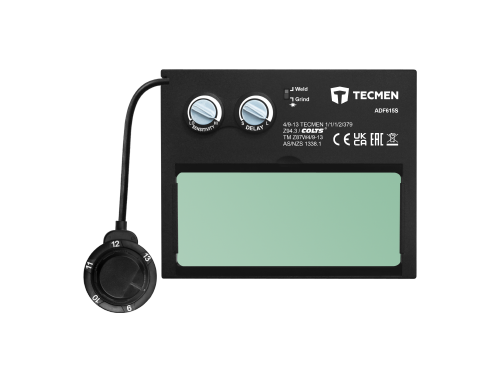

ADF Model
ADF615SOptical class
1/1/1/2Viewing area
96*40mmCartridge size
110*90*9mmArc sensor
2Light state
DIN3.5Dark state
DIN9-13Shade control
ExternalPower on/off
Automatic on/offSensitivity control
By infinitely dial knobUV/IR protection
Up to DIN 16 at all timesPower supply
Solar cell with a built-in rechargeable batterySwitching time
1/25000s from light to darkDelay (dark to light)
0.1-1.0s adjustable by infinitely dial knobLow amperage TIG rated
≥10 amps (DC); ≥10 amps (AC)Grinding
YesBattery capacity test
N/ALow battery indicator
N/AOperating temp.
-10℃ to 55℃Storing temp.
-20℃ to 70℃Helmet material
High impact resistant nylon
