Let your ADF remember your settings.

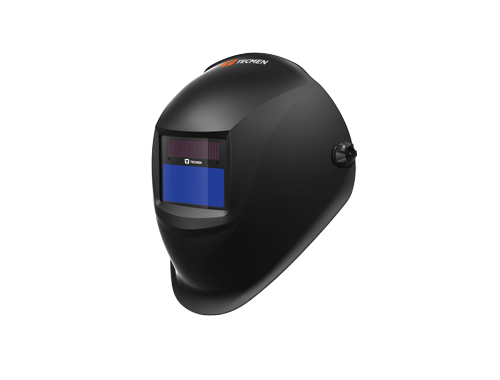

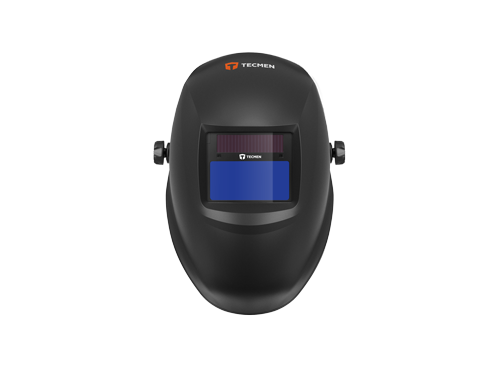

TM15 auto-darkening welding helmet

TM15 with ADF710D

Extended shade range with auto-save function

Easy operation saves your downtime.

Key features

Auto-save01

Parameters auto-save after changes, so you can resume work with your prior settings after a restart.

Extended shade range02

3.0 (grinding) / 5-8 (cutting) / 9-13 (welding) /14-15 (dark mode). The unmatched shade range allows for a wide range of applications.

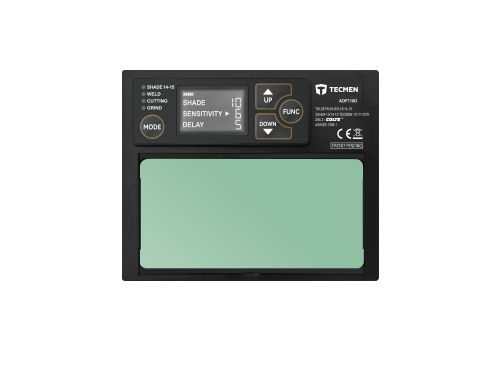

Clear interface design03

User-friendly and intuitive control panel. Mode switch, sensitivity, delay and shade number adjustable with just a short press.

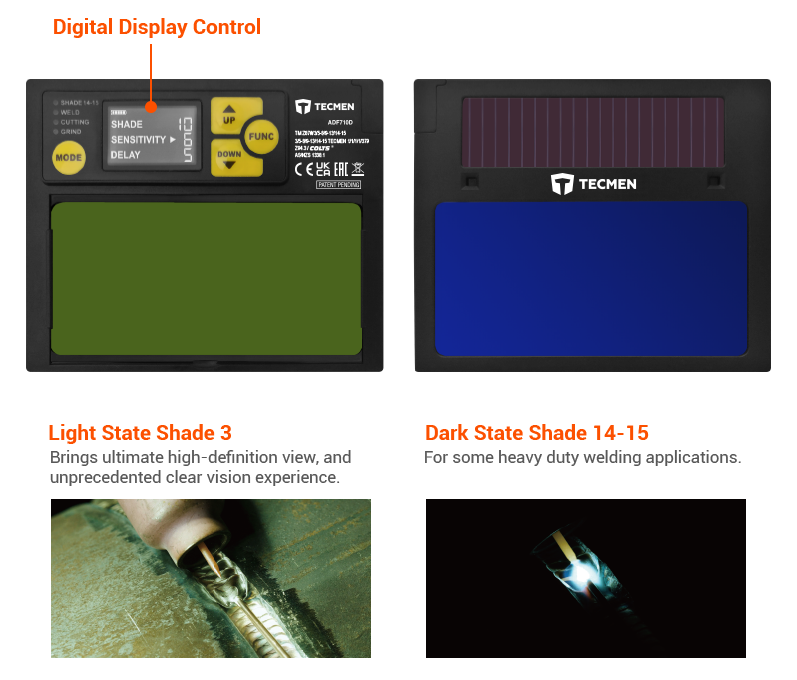

Digital Display Control04

Digital display control allows for easy switch between four mode options: GRIND, CUTTING, WELD and DARK modes.

Specifications

More information about our products

Specifications

ADF Model

ADF710D

Optical class

1/1/1/1

Viewing area

97*47mm

Cartridge size

110*90*9mm

Arc sensor

Light state

DIN3.0

Dark state

DIN5-8/9-13/14-15

Shade control

Internal (digital display control)

Power on/off

Automatic on/off

Sensitivity control

Digital display control

UV/IR protection

Up to DIN 16 at all times

Power supply

Solar cell with 1 replaceable CR2450 lithium battery

Switching time

1/25000s from light to dark

Delay (dark to light)

0.1-1.0s adjustable by LED and button control

Low amperage TIG rated

≥2 amps (DC); ≥2 amps (AC)

Grinding

Yes

Battery capacity test

N/A

Low battery indicator

Yes (digital display)

Operating temp.

-10℃ to 55℃

Storing temp.

-20℃ to 70℃

Helmet material

High impact resistant nylon
