iEXP Series

900 with 950-D

Super wide viewing area with side lens

Experience comprehensive protection by integrating our advanced TM1000 auto-darkening helmet with the PAPR system. Shade 5 lens on both sides, flip-up design plus lightweight design make it the right solution to long-time work.

  • New

    New

  • External grinding

    You can switch to grind mode by the external button.

  • Hard hat compatible

    You can pair it with hard hats for extra head protection.

  • Flip-up

    You can lift the front cover for grinding job.

  • Cutting

    Can be used for cutting.

  • Side lens

    Equipped with side lens for larger field of view.
Request a quotation
Overview Specifications Contact Approvals Related products
Expand your welding horizon.

Expand your welding horizon.

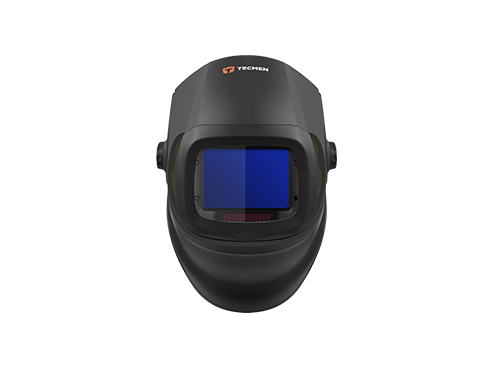

900 auto-darkening welding helmet

900 with 950-D

Side lenses and digital display

Features maximum field of view and easy observation of the surroundings.

Key features

Ultra-wide field of view01

107x55 mm field of view, providing an expansive and clear perspective of your work environment.

Side lenses02

Shade 5 side lenses on both sides, maximizing the welder's field of view. Enhance surrounding vision, minimize workplace hazard.

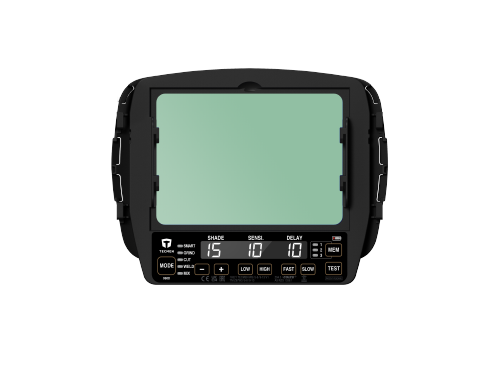

Digital display03

The smart digital backlit screen ensures clear and accurate visibility of your welding settings, even in low-light or dark environments.

Super bright vision04

Shade 2.0 at the light state, light transmittance up to 31%, provide welders with superior clarity and visual acuity.

Specifications

More information about our products

Specifications

ADF Model

950-D

Optical class

1/1/1/1

Viewing area

107*75mm

Cartridge size

156*123*33mm

Arc sensor

4

Light state

DIN3.0

Dark state

DIN5-8/9-15

Shade control

Internal (digital display control)

Power on/off

Automatic on/off

Sensitivity control

Digital display control

UV/IR protection

Up to DIN 16 at all times

Power supply

Solar cell with 2 replaceable CR2450 lithium battery

Delay (dark to light)

0.04-1.0s adjustable by digital display control

Low amperage TIG rated

≥2 amps (DC); ≥2 amps (AC)

Grinding

Yes

Low battery indicator

Digital display

Operating temp.

-10℃ to 55℃

Storing temp.

-20℃ to 70℃

Helmet material

High impact resistant nylon
