TM15 with ADF730S-Products-TECMEN

Overview Specifications Contact Approvals Related products

Industrial grade configuration.

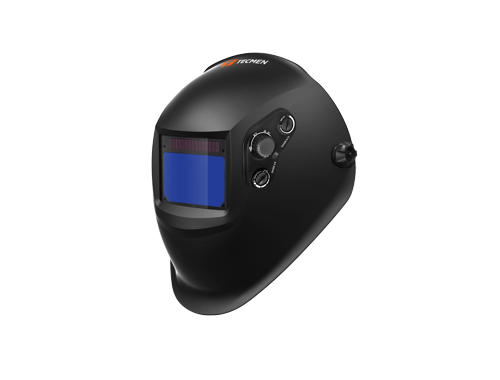

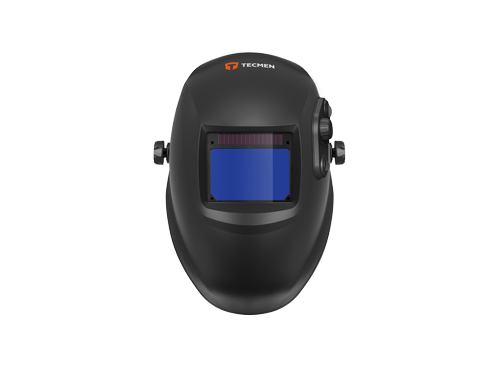

TM15 auto-darkening welding helmet

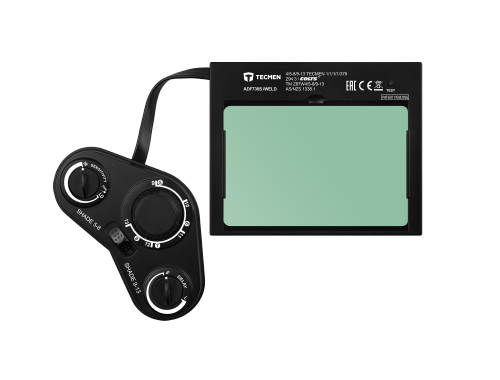

TM15 with ADF730S

Wider vision and stronger sensor

Bigger screen, plus ultra high-definition view.

Key features

Highest optical class01

1/1/1/1 highest optical class certified by CE standard, which stands for the highst optical class, light diffusion, light homogeneity, and angle dependence.

Independent arc sensors02

Come with 4 built-in arc sensors that can work independently. The arc sensors focus on the welding arcs without any interference from surroundings. Applicable under direct sunlight environment.

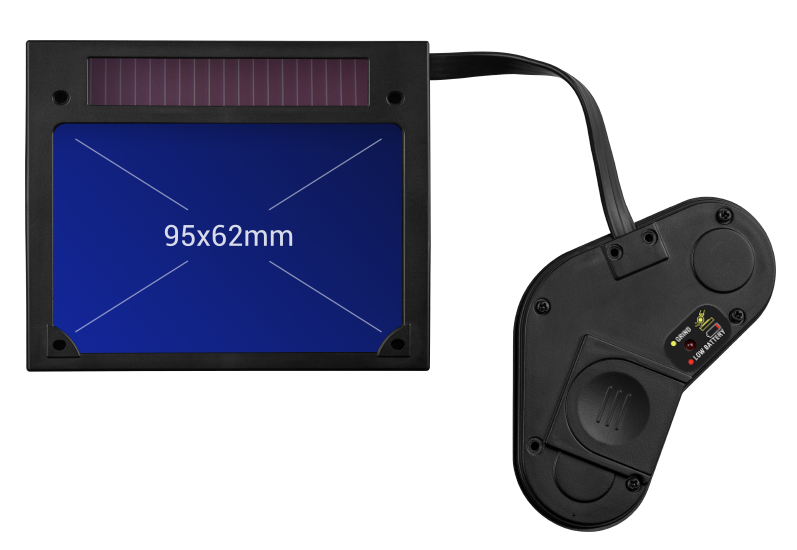

Extended field of view03

95×62mm wide filter screen, ≥2 amps (DC/AC) low amperage TIG rated.

Battery replaceable04

Solar cell plus a replaceable CR2450 lithium battery.

Specifications

More information about our products

Specifications

ADF Model

ADF730S

Optical class

1/1/1/1

Viewing area

95*62mm

Cartridge size

110*90*9mm

Arc sensor

Light state

DIN3.5

Dark state

DIN5-8/9-13

Shade control

External

Power on/off

Automatic on/off

Sensitivity control

By infinitely dial knob

UV/IR protection

Up to DIN 16 at all times

Power supply

Solar cell with 1 replaceable CR2450 lithium battery

Switching time

1/25000s from light to dark

Delay (dark to light)

0.1-1.0s adjustable by infinitely dial knob

Low amperage TIG rated

≥2 amps (DC); ≥2 amps (AC) Grinding

Grinding

Yes

Battery capacity test

Yes

Low battery indicator

Yes

Operating temp.

-10℃ to 55℃

Storing temp.

-20℃ to 70℃

Helmet material

High impact resistant nylon
