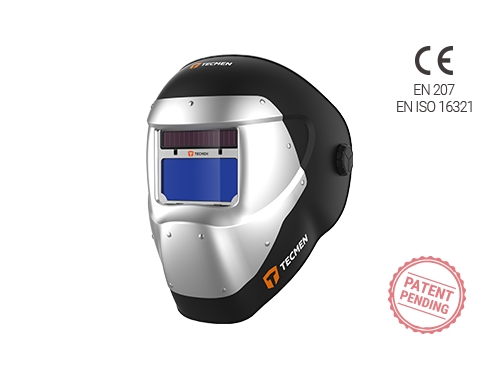

100LW Respiratory Laser Welding Helmet

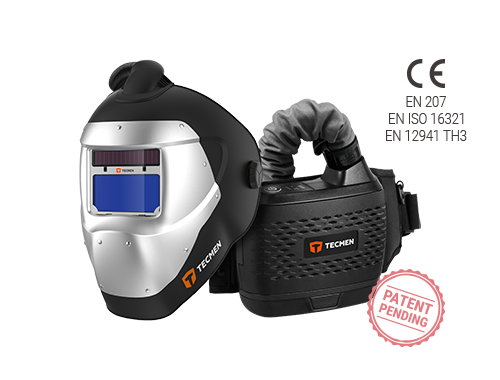

FreFlow V1 with 100LW Respiratory Laser Welding Helmet

FreFlow V1 with 100LW Respiratory Laser Welding helmet

Designed for maximum protection while ensuring every breath is clean and comfortable.

Key features

Effective laser protection01

Designed to meet EN207
OD10+@1064nm, the 100LW provides full protection to prevent eye burns, retinal damage and other tissue damage.

High filtration performance02

Provides excellent respiratory, eye, and face protection with an overall filtration efficiency ＞99.997%.

Ultra-clear vision03

Experience exceptional clarity and details with TECMEN's light state 2.0 variable shade laser lens. Superior vision quality leads to superior work quality.

Smart adjustment04

Shade number, delay and sensitivity all easily adjustable using our user-friendly panel.

Specifications

More information about our products

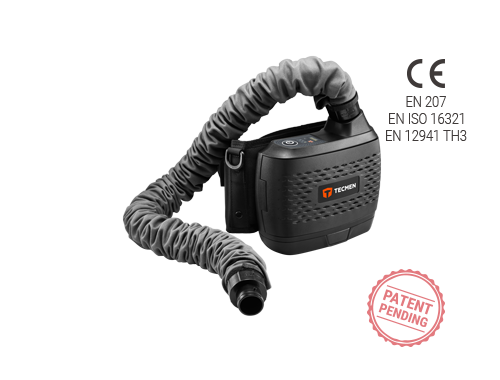

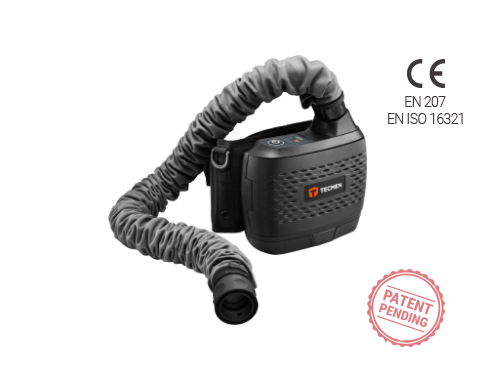

100LW Laser Welding helmet FreFlow V1 blower unit

ADF Model

100LW

Viewing Area

96x46.5mm

Optical Class

1 / 1 / 1 / 2

Number of Sensors

Power On/Off

Automatic On/Off

Dark State

4-8/8-12

Light State

Shade 2.0

Switching Speed

1/25000s, from Light to Dart

Special Modes

GRIND / CUT / MIX / DARK

Sensitivity Control

Low-High,button control

Delay

0.1-1.0s,button control

UV/IR protection

Up to Shade DIN 16 at all times

Operating Temp.

-10℃ to 55℃（14℉ to 131℉）

Storing Temp.

-20℃ to 70℃（-4℉ to 158℉）

Helmet Material

Special compound material

Laser Protection

1000-1100 D LB7+ IR LB8

Optical Density(OD )

OD 8@1000-1100nm,OD 10+@1064nm

Approvals

EN207, EN ISO 16321,EN12941 TH3

Manufacturer’s minimum design flow rate

165+lpm (5.8+cfm)

Low speed

170+lpm

High speed

210+lpm

Battery type

Rechargeable Li-ion battery

Battery charge time

1 hour

Battery life

At least 500 charges

Battery duration

9 hours at 170+lpm; 5-6 hours at 210+lpm

Weight

1020g

Filter efficiency

＞99.997%

Operating temp

-5℃ to 55℃

Storing temp

-10℃ to 55℃

Relative operating humidity (R.H.)

＜90%

Relative storage humidity (R.H.)

＜85%

Alarm

Audible, visual, vibrating
