Industrial design with excellent performance
With advanced headgear design, the iWELD series greatly reduce eye/head/neck fatigue. Options available for different shade control and viewing area.
External grinding
Hard hat compatible

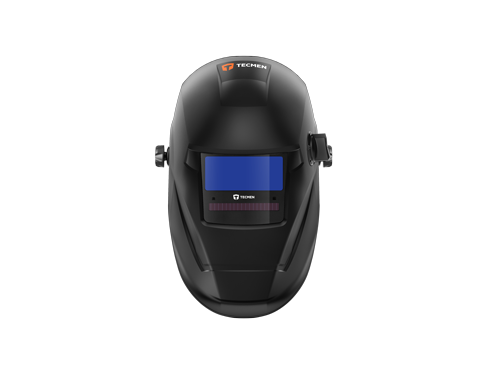

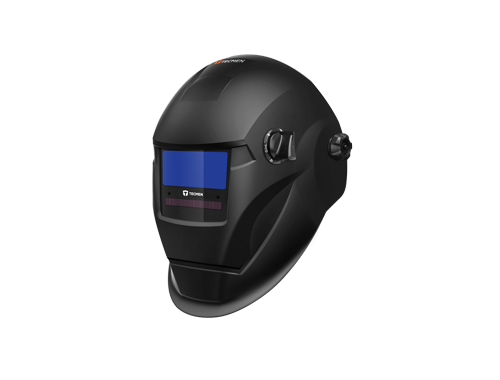

TM14 auto-darkening welding helmet
Multi-point headband for your maximum comfort.
Key features
Come with 2 built-in arc sensors that can work independently. The arc sensors focus on the welding arcs without any interference from surroundings. Applicable under direct sunlight environment.
1/25000s instant switch, dark mode triggered immediately with no delay when arc is detected by the highly sensitive sensors.
Solar cell plus 2 replaceable AAA Alkaline battery.

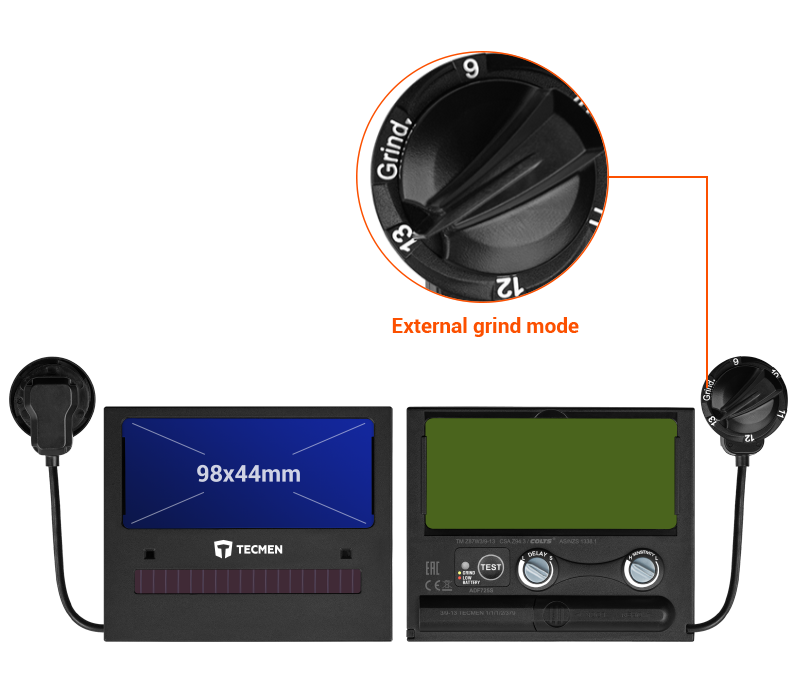

Allows quick switch between welding and grinding modes without lifting your welding helmet or gloves.
More information about our products

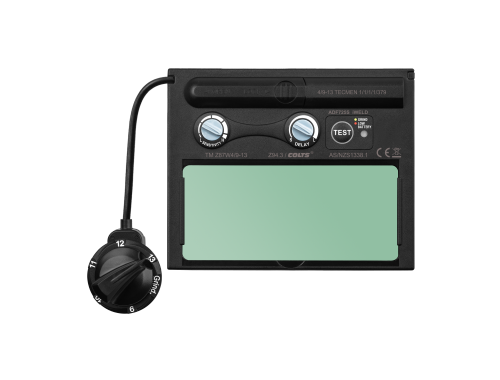

ADF Model
ADF725SOptical class
1/1/1/2Viewing area
98*44mmCartridge size
110*90*9mmArc sensor
2Light state
DIN3.5Dark state
DIN9-13Shade control
ExternalPower on/off
Automatic on/offSensitivity control
By infinitely dial knobUV/IR protection
Up to DIN 16 at all timesPower supply
Solar cell with 2 replaceable AAA Alkaline batterySwitching time
1/25000s from light to darkDelay (dark to light)
0.1-1.0s adjustable by infinitely dial knobLow amperage TIG rated
≥5 amps (DC); ≥5 amps (AC)Grinding
YesBattery capacity test
YesLow battery indicator
YesOperating temp.
-10℃ to 55℃Storing temp.
-20℃ to 70℃Helmet material
High impact resistant nylon
