FreFlow V1 PRO with TM1000 Auto-darkening Helmet-Products-TECMEN

Overview Specifications Contact Approvals Related products

Every detail crafted for seamless operation.

FreFlow V1 PRO 900FP-V
PAPR with flip-up auto-darkening helmet

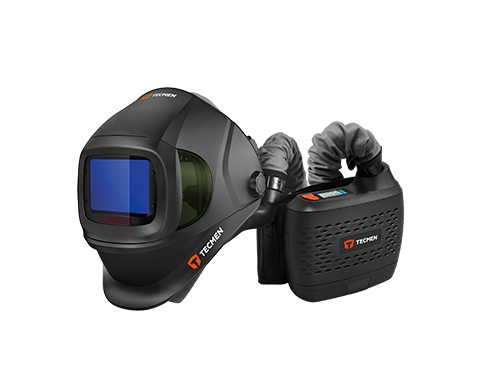

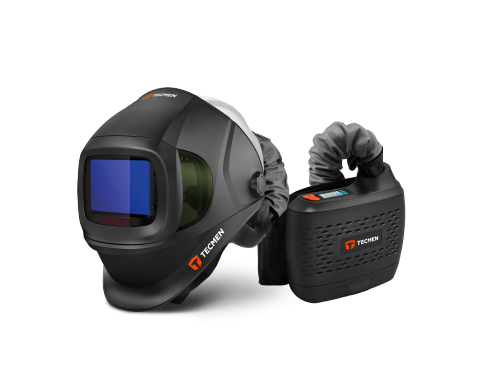

FreFlow V1 PRO with TM1000 Auto-darkening Helmet

Easy transition between modes at the touch of a button.

Built-in ultra-wide transparent grinding window enables seamless transition between welding and grinding mode.

Key features

The highest optical class01

1/1/1/1 the highest optical class certified by CE standard, which stands for the highst optical class, light diffusion, light homogeneity, and angle dependence.

4 independent arc sensors02

Four built-in independently operated sensors, ensure no arc flashes in complex operating environments.

Side lens03

Shade 5 side lends on both sides, maximizing the welder's field of view. Enhance surrounding vision, minimize workplace hazard.

Digital display04

The innovative smart digital backlight screen ensures clear and accurate visibility of your welding settings, even in low-light or dark environments.

Specifications

More information about our products

900FP-V Welding helmet FreFlow V1 PRO blower unit

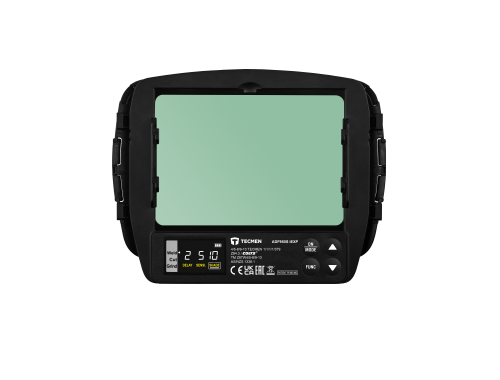

ADF Model

ADF930S/ADF950S

Optical class

1/1/1/1

Viewing area

107*55 (930S) /107*75 mm (950S)

Cartridge size

156*123*33 mm

Arc sensor

Light state

DIN4.0

Dark state

5-8/9-13

Shade control

Internal (digital display control)

Power on/off

Automatic on/off

Sensitivity control

Digital display control

UV/IR protection

Up to DIN 16 at all times

Power supply

Solar cell with 2 replaceable CR2450 lithium battery

Delay (dark to light)

0.1-1.0s adjustable by digital display control

Switching time

1/25000s from light to dark

Low amperage TIG rated

≥2 amps (DC); ≥2 amps (AC)

Grinding

Yes

Low battery indicator

Digital display

Operating temp.

-10℃ to 55℃

Storing temp.

-20℃ to 70℃

Helmet material

High impact resistant nylon

Low speed

170+lpm

Standard speed

190+lpm

High speed

210+lpm

Battery type

Rechargeable Li-ion battery

Charge time

1 hour

Battery life

At least 500 charges

Battery duration

10h (170+lpm); 9h (190+lpm); 8h (210+lpm)

Weight

1050g

Filter efficiency

＞99.997%

Operating temp.

-5℃ to 55℃

Storing temp.

-10℃ to 55℃

Relative operating humidity (R.H.)

＜90%

Relative storage humidity (R.H.)

＜85%

Alarm

Audible, visual, vibrating
