V Series Welding Helmet

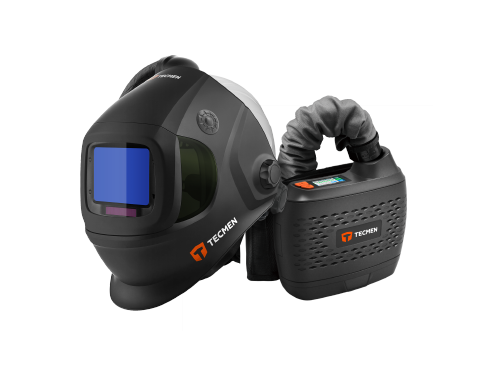

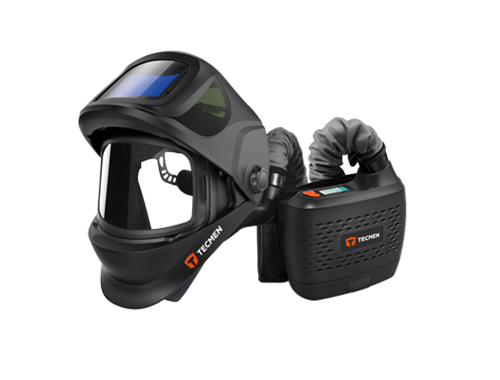

FreFlow V1 PRO with 900 Auto-darkening Helmet

Extra large view with 4 independent sensors

Experience comprehensive protection by integrating 900 auto-darkening helmet with the PAPR system. The all-in-one solution provides highly effective protection against the hazardous gases generated during welding, while delivering a continuous flow of clean, filtered air directly to the breathing zone.
Designed to maximize both comfort and safety, this system is the optimal choice for welders who demand the best in protection and performance.

  • New

    New

  • FreFlow V1 PRO

    Minimizes the risk of chemical exposure to sensitive areas of the body.
Request a quotation
Specifications Contact Approvals Related products

Specifications

More information about our products

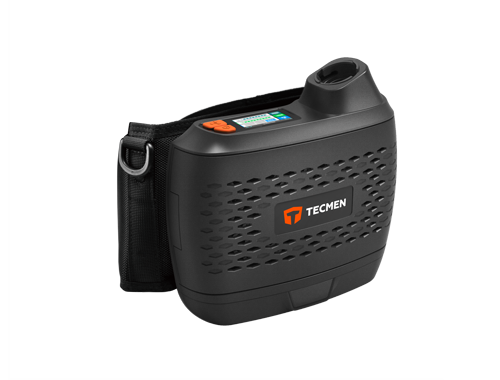

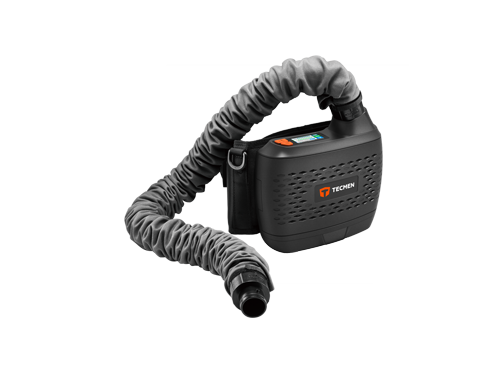

900-GV Welding helmet FreFlow V1 PRO blower unit

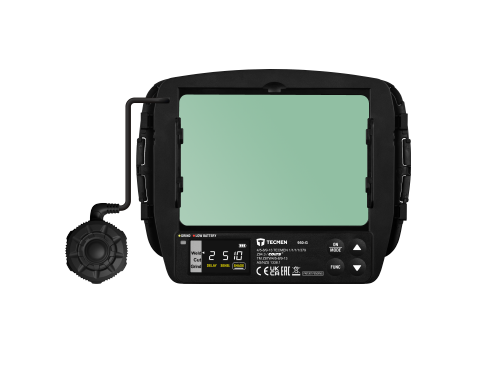

ADF Model

ADF930-G/ADF950-G

Optical class

1/1/1/1

Viewing area

107*55 (930-G) /107*75 mm (950-G)

Cartridge size

156*123*33mm

Arc sensor

4

Light state

DIN4.0

Dark state

5-8/9-13

Shade control

Internal (digital display control)

Power on/off

Automatic on/off

Sensitivity control

Digital display control

UV/IR protection

Up to DIN 16 at all times

Power supply

Solar cell with 2 replaceable CR2450 lithium battery

Delay (dark to light)

0.1-1.0s adjustable by digital display control

Switching time

1/25000s from light to dark

Low amperage TIG rated

≥2 amps (DC); ≥2 amps (AC)

Grinding

Yes

Low battery indicator

Digital display

Operating temp.

-10℃ to 55℃

Storing temp.

-20℃ to 70℃

Helmet material

High impact resistant nylon

Low speed

170+lpm

Standard speed

190+lpm

High speed

210+lpm

Battery type

Rechargeable Li-ion battery

Charge time

1 hour

Battery life

At least 500 charges

Battery duration

10h(170+lpm); 9h(190+lpm); 8h(210+lpm)

Weight

1050g

Filter efficiency

＞99.997%

Operating temp.

-5℃ to 55℃

Storing temp.

-10℃ to 55℃

Relative operating humidity (R.H.)

＜90%

Relative storage humidity (R.H.)

＜85%

Alarm

Audible, visual, vibrating
